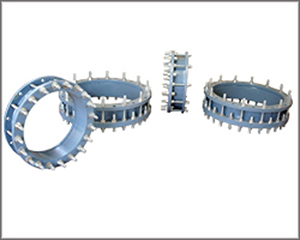

MS (Mild Steel) Flange Adaptors / Adapters

We are Manufacturer, Supplier, Exporter of MS (Mild Steel) Flange Adaptors / Adapters, Weldable Type Flange Adapters, Flange Type Flange Adapters from Ahmednagar, Maharashtra, India.


The flange adaptor is the most basic type of dismantling joint. On one side, it has a flange connection in accordance with the required flange standard, on the other an insertion socket for the pipe. A variety of standard pipe types can be connected.

flange adaptors are available for a variety of pipe types. The anti-torque bolts also make the flange adaptor suitable for a fast “one-man installation”.

There are two types of Flange Adapters
1) Weldable Type Flange Adapters
2) Flange Type Flange Adapters

Also we mfg. the flanges as per customers requirements and also flanges for PVC PIPE COUPLINGS.

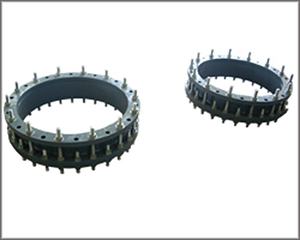

Flange Type Adaptors

AEF - WFA

The ANANT is equipped with two flanges and one follower end-ring. This design offers optimal gasket control with the separate stud bolts applying pressure to the gasket independently of the tie-rods making the flange connections. This allows a reduction in the number of tie-rods required as their function is restraining only. The AEF - WFA comes equipped with 25 % tie-rods for PN 10 and PN 16 and 50 % tie-rods for PN 25 and PN 40 applications.
The AEF - WFA also makes an unrestrained set-up possible. Here no threaded tie-rods are used allowing the dismantling joint to act as a limited expansion joint absorbing noises and vibrations in the pipeline. This variant requires a fixed point in the pipeline. Anchoring is required if the pipe end can be pulled out of the dismantling joint
Both versions of the AEF - WFA are available in the pressure ratings PN 10, PN 16, PN 25 & PN 40 and in nominal sizes of DN 50 to DN 1600, with a standard longitudinal adjustment of ± 25 mm. Connection flanges to any standard are available upon customer request. Larger nominal sizes, higher pressure ratings and non-standard build lengths are also available on request.

The AEF - WFA with four flanges and 100 % tie-rods is the ultimate solution for challenging installations. The additional flange results in an increased construction length which makes it possible to slide the threaded tie-rod between end flanges during installation and removal. The AEF - WFA is also suitable in situations where the overall space only just corresponds to the construction length. This allows sideways insertion making the AEF - WFA ideal for cases where the connection flanges are fixed e.g. where pipes protrude out of the wall.
The additional flange also makes a time-saving preliminary installation of valves possible. The valve and dismantling joint can be fitted together in the pipeline assembly which are then fitted and clamped together (and removed again) together with the dismantling joint. A further advantage is the continuous threaded tie-rods on one side which makes it possible to remove the valve only.
The AEF - WFA can be locked at the required length with adjustability of± 25 mm when installed in pipelines. Connection flanges can also be delivered according to different standards.

AEF - FFA

Equipped with three flanges, the AEF - FFA is the perfect solution for all standard and non-standard applications. It is easy to install and remove thanks to the standard longitudinal adjustability of ± 25 mm and thus offers perfect support during the installation and removal of valves. The AEF - FFA has connection flanges with the same dimensions at both ends and is lockable. The AEF - FFA dismantling joint with 100 % continuous threaded tie-rods ensures complete restraint and a leakfree operation. The AEF - FFA is available in standard nominal sizes (see dimensions and weights table) and larger sizes and higher pressure ratings up to 100 bar are always possible depending on customer requirements.

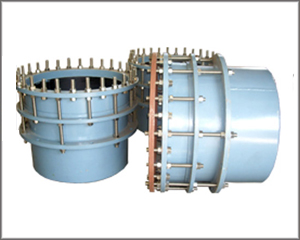

AEF - WFA

AEF - FFA

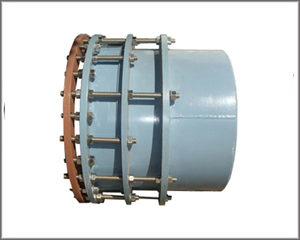

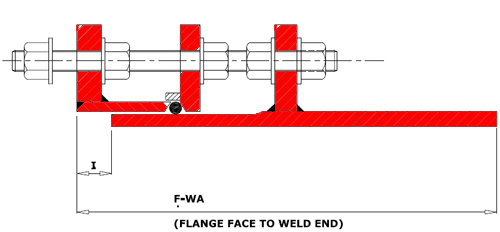

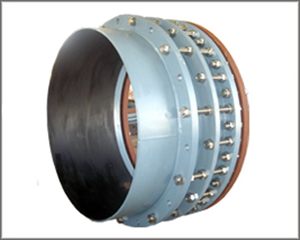

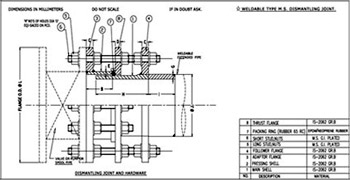

WELDABLE TYPE FLANGE ADAPTOR AEF-WFA
SIZE (NB)
SPECIFICATION
Dimensions (mm)
OPENING I (±)
PN-6
PN 10
PN 16
PN 25
mm
100
F-WE
Tie-rod: Size x Length (L)
400
M16x250
400
M16x250
450
M16x250
450
M16x250
±25
125
F-WE
Tie-rod: Size x Length (L)
400
M16x250
400
M16x270
450
M16x330
450
M16x250
±25
150
F-WE
Tie-rod: Size x Length (L)
400
M16x275
400
M20x275
450
M20x360
450
M16x250
±35
200
F-WE
Tie-rod: Size x Length (L)
400
M16x300
400
M20x300
450
M20x360
450
M22x390
±35
250
F-WE
Tie-rod: Size x Length (L)
400
M16x300
400
M20x340
450
M22x390
450
M27x440
±50
300
F-WE
Tie-rod: Size x Length (L)
500
M20x350
500
M20x360
450
M22x420
450
M27x460
±50
350
F-WE
Tie-rod: Size x Length (L)
500
M20x350
500
M20x380
550
M22x420
550
M30x480
±50
400
F-WE
Tie-rod: Size x Length (L)
500
M20x425
500
M24x415
550
M27x460
550
M33x500
±50
450
F-WE
Tie-rod: Size x Length (L)
500
M20x450
500
M24x450
550
M27x460
550
M33x55O
±50
500
F-WE
Tie-rod: Size x Length (L)
500
M20x450
500
M24x465
550
M30x5OO
550
M33x550
±50
600
F-WE
Tie-rod: Size x Length (L)
500
M24x475
500
M27x475
550
M33x550
550
M36x630
±50
700
F-WE
Tie-rod: Size x Length (L)
600
M24x500
600
M27x490
650
M33xSOO
650
M39x600
±50
800
F-WE
Tie-rod: Size x Length (L)
Clear Opening
600
M27x500
600
M30x500
650
M36x550
650
M45x660
±50
900
F-WE
Tie-rod: Size x Length (L)
750
M27x550
750
M30x550
800
M36x55O 509 kg
850
M45x660
±50
1000
F-WE
Tie-rod: Size x Length (L)
750
M27x575
750
M33x565
800
M39x600
850
M52x700
±50
1100
F-WE
Tie-rod: Size x Length (L)
750
M30x575
750
M33x465
800
M39x600
850
M52x700
±50

1200
F-WE
Tie-rod: Size x Length (L)
750
M30x625
750
M36x650
800
M45x660
850
M52x700
±50
1300
F-WE
Tie-rod: Size x Length (L)
750
M33x625
750
M36x660
800
M45x660
850
M52x700
±50
1400
F-WE
Tie-rod: Size x Length (L)
800
M33x700
800
M39x725
800
M45x660
850
M52x700
±75
1500
F-WE
Tie-rod: Size x Length (L)
800
M33x725
800
M39x730
850
M52x700
850
M52x700
±75
1600
F-WE
Tie-rod: Size x Length (L)
900
M33x750
900
M45x750
950
M52x700
950
M52x700
±75
1800
F-WE
Tie-rod: Size x Length (L)
900
M36x775
900
M45x775
950
M52x700
950
M52x700
±75
2000
F-WE
Tie-rod: Size x Length (L)
900
M39x800
900
M45x800
950
M56x700
950
M52x700
±75
